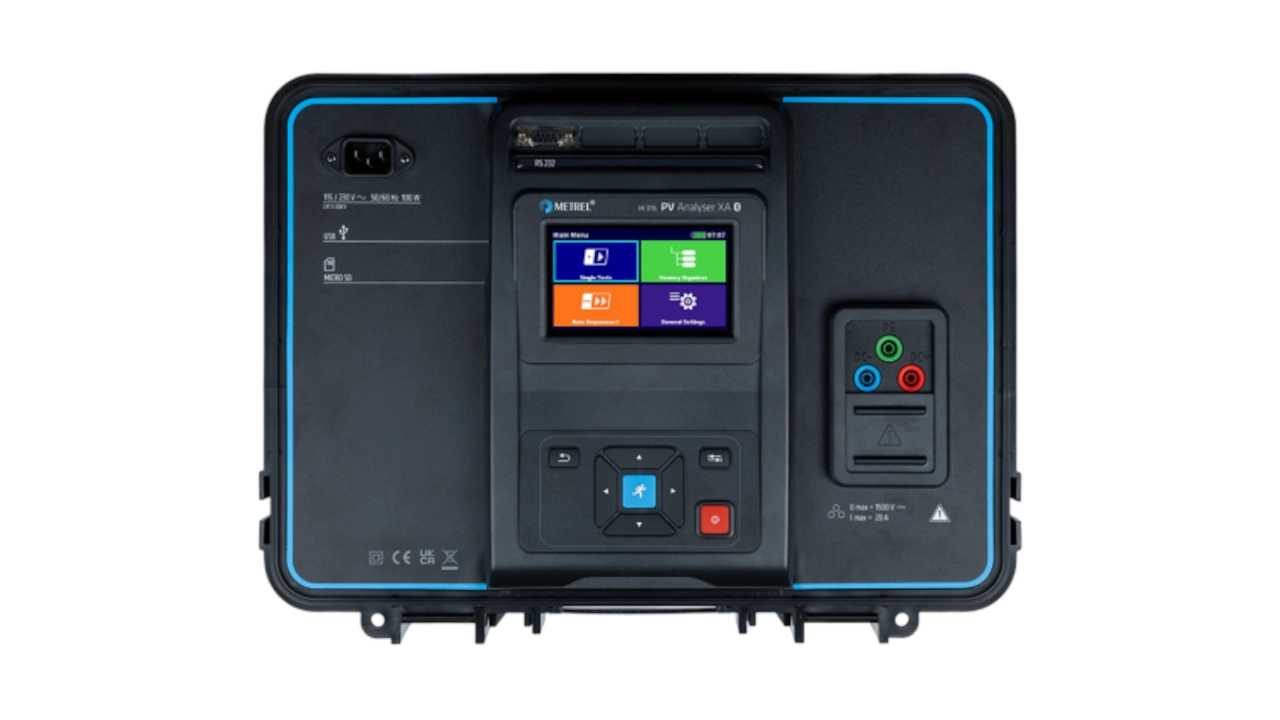

Metrel MI 3116 PV Analyser XA PV tester up to 1500 V

The Metrel MI 3116 PV Analyser XA is a high-performance PV tester for large-scale PV plants up to 1500 V DC. It combines insulation measurement, I/U curve measurement, UOC/ISC testing, continuity testing and environmental parameter acquisition in one PV workflow.

For O&M teams, the instrument is particularly interesting when measurements, the PV module database, remote environmental measurement, STC calculation, memory structure and reporting need to be integrated cleanly into a repeatable measurement process.

Discuss this tester Compare PV testers

for utility-scale PV plants up to 1500 V DC
I/U curve measurement up to 1500 V / 40 A / 48 kW
Wi-Fi remote unit for irradiance and cell temperature

Description

What is the MI 3116 PV Analyser XA suitable for?

The MI 3116 PV Analyser XA is designed for testing large 1500 V PV plants, initial verification, periodic testing, maintenance, troubleshooting and report generation. It supports tests according to EN 62446 as well as measurements according to IEC 61829 and STC corrections according to IEC 60891.

Key measurement functions include insulation resistance on PV strings, UOC/ISC measurement, I/U curve measurement, 200 mA continuity testing, polarity testing and the acquisition of irradiance and PV module temperature via the remote unit.

For practical use in solar park O&M, the measurement range is not the only relevant factor. What matters is whether O&M teams use the PV module database, Auto Sequences, memory structure, remote environmental measurement and report creation in a consistent way.

Measurement functions

PV measurements for 1500 V systems

The MI 3116 PV Analyser XA is designed for PV measurements with high voltages and currents. For O&M teams, it is important to define which measurements become a repeatable standard process.

UOC / ISC

Measurement of open-circuit voltage and short-circuit current on PV strings. The voltage measuring range extends up to 1699 V DC, while the intended use is for PV systems up to 1500 V DC.

I/U curve

I/U curve measurement up to 1500 V, 40 A and 48 kW. The curve can be evaluated numerically and graphically and supports PV string diagnostics and assessment.

Insulation resistance

RISO PV measurements with test voltages up to 1500 V DC. Results can be used for Roc+, Roc- and Roc and form part of PV safety testing.

200 mA continuity

R-low measurement with at least 200 mA measuring current for testing protective conductor and equipotential bonding connections.

Environmental parameters

Irradiance and PV module temperature are captured through the remote unit and accessories such as reference cell and temperature probe. These data are essential for STC calculation and assessment.

Auto Sequences

Auto Sequences can guide test procedures and standardize measurements. Teams should define in advance which sequences are mandatory for which plant and measurement tasks.

O&M use

From measuring instrument to robust measurement process

The MI 3116 PV Analyser XA offers extensive technical functionality. To turn that functionality into usable results in daily O&M work, measurement process, data structure and reporting must be prepared cleanly.

Measurement strategy

Which strings, sub-arrays or plant sections are measured, when and with which scope of testing?

PV module database

PV module data influences STC values, target-value comparison and evaluation. Incorrect or incomplete module data can make interpretation more difficult.

Remote measurement

The A 1785 PV Remote WL captures environmental parameters. Positioning, synchronization and assignment to the measurement should be clearly regulated in the process.

Reporting

I/U measuring instrument, STC values, measurement status, workspaces and export data must be organized so that reports remain traceable and comparable.

Data & communication

Interfaces for measurement data, remote unit and PC workflow

The MI 3116 PV Analyser XA combines local storage, PC communication and wireless communication with the remote unit. Teams should define the mandatory data path before the rollout.

USB & RS232

The operating manual describes USB and RS232 communication with the PC. These interfaces are relevant for data transfer, the software workflow and technical integration.

Wi-Fi Remote WL

Wi-Fi is used for communication between the main instrument and the A 1785 PV Remote WL. This allows irradiance and cell temperature to be captured and assigned during the measurement.

Bluetooth

The instrument includes Bluetooth v4.2 BR/EDR and BLE. The team process should define whether and how Bluetooth is used in the specific setup.

microSD & storage

The main unit has a microSD card slot. microSD cards up to 512 GB are supported. The storage and export process should be defined within the O&M team.

Technical data

Key data of the MI 3116 PV Analyser XA

The most important technical data show where the Metrel MI 3116 PV Analyser XA is relevant in solar park O&M: PV measurements up to 1500 V DC, high current measuring ranges, I/U curve measurement, STC evaluation, wireless acquisition of environmental parameters and digital processing via Metrel ES Manager.

PV system voltage	up to 1500 V DC
Voltage measuring range	20.0 … 199.9 V DC / 200 … 1699 V DC
PV current measuring range	0.10 … 39.99 A DC
PV power measuring range	0.2 W … 48.0 kW
I/U curve	1500 V / 40 A / 48 kW
Insulation resistance	Roc+, Roc-, Roc; measuring ranges up to 999 MΩ
Insulation test voltages	250 V, 500 V, 1000 V and 1500 V DC
Continuity measurement	200 mA, measuring range up to 1999 Ω
Irradiance	0 … 999 W/m² / 1.00 … 1.75 kW/m² with A 1834
Temperature	-10.0 … 85.0 °C with A 1833
Display	4.3" colour TFT, 480 × 272 pixels, touchscreen
Main unit protection rating	IP54 with closed cover / IP40 with open cover
Memory	microSD card slot up to 512 GB
Communication	RS232, USB 2.0 Type-B, Bluetooth v4.2, Wi-Fi
Dimensions / weight	Main unit approx. 420 × 180 × 330 mm / 6.8 kg

Standards & operating limits

For PV testing, documentation and I/U curve measurement

The MI 3116 PV Analyser XA is designed for relevant PV and electrical installation standards. Operating limits and safety instructions from the operating manual must be known before field measurements are carried out.

EN 62446-1 / EN 62446-2

Requirements for testing, documentation and maintenance of grid-connected PV systems. The MI 3116 supports, among other functions, IEC 62446 Autotest and Auto Sequence workflows.

IEC 61829 & IEC 60891

IEC 61829 describes on-site measurement of current-voltage characteristics. IEC 60891 is relevant for temperature and irradiance corrections of measured I/U curves.

EN 61557 & EN 61010

Relevant safety and test instrument standards for electrical safety, measurement and test circuits and protective measures in low-voltage systems.

Downloads

Documents for the Metrel MI 3116 PV Analyser XA

Here you will find the datasheet for the Metrel MI 3116 PV Analyser XA for technical classification, measurement functions, accessories and preparation for practical use in solar park O&M.

PDF Datasheet Features, measurement functions, technical data and accessory overview

Set & accessories

What is included in the standard set

The MI 3116 standard set includes the main unit, remote unit, reference cell, temperature probe, test leads, accessories and software access. The exact configuration may vary depending on country and offer.

Main components

MI 3116 PV Analyser XA, A 1785 PV Remote WL, PV reference cell, PV temperature probe, clamps for accessory mounting and calibration certificates.

Test leads

MC4 test leads for 1500 V, coloured test leads, 50 m cable on reel, crocodile clip, test probes and USB cable.

Software & documentation

Metrel ES Manager, operating manual, quick guide, microSD card, power and supply components and transport bag.

Comparison for technical O&M decision-makers

Compare PV testers up to 1500 V in a structured way

Use the comparison page to classify measuring range, measurement functions, software, data handling and reporting capability of different PV measurement solutions for practical use in solar parks.

Go to comparison

sunparq support

An instrument like the MI 3116 PV needs a clear rollout process

The technical feature set is extensive. For O&M teams to use it reliably, training, data structure, Auto Sequences, software workflow and report review should be introduced together.

Assessment

Clarifies whether the MI 3116 PV Analyser XA fits the measurement task, team structure, software environment and reporting requirements.

Rollout

Introduces the instrument, accessories, remote unit, software, data structure and measurement process in the team.

Operational Readiness

Supports your team after implementation with support, report reviews, onboarding and process refinement.

FAQ

Frequently asked questions about the Metrel MI 3116 PV Analyser XA

Is the MI 3116 PV Analyser XA suitable for 1500 V solar parks?

Yes, the instrument is designed for PV systems up to 1500 V DC. According to the datasheet, it also supports I/U curve measurements up to 1500 V, 40 A and 48 kW. The operating limits in the manual must be observed in the field.

What role does the A 1785 PV Remote WL play?

The remote unit is used for wireless acquisition and assignment of environmental parameters such as irradiance and cell temperature. These values are essential for STC calculation and I/U curve evaluation.

Which software is used for data and reports?

The MI 3116 is used with Metrel ES Manager, or MESM. The software supports measurement structures, upload and download of data, I/U curve analysis, PV module database and professional report creation.

Is the instrument only intended for individual measurements?

No. In addition to individual tests, the instrument supports Auto Sequences, Memory Organizer, workspaces and grouped measurements. For O&M teams, it is useful to define this structure before use.

Can sunparq introduce the MI 3116 into an O&M process?

Yes. sunparq can support assessment, rollout, training, data structure, report review and Operational Readiness around practical use in the O&M team.
