HT PVCHECKs ProPlus PV tester up to 1500 V

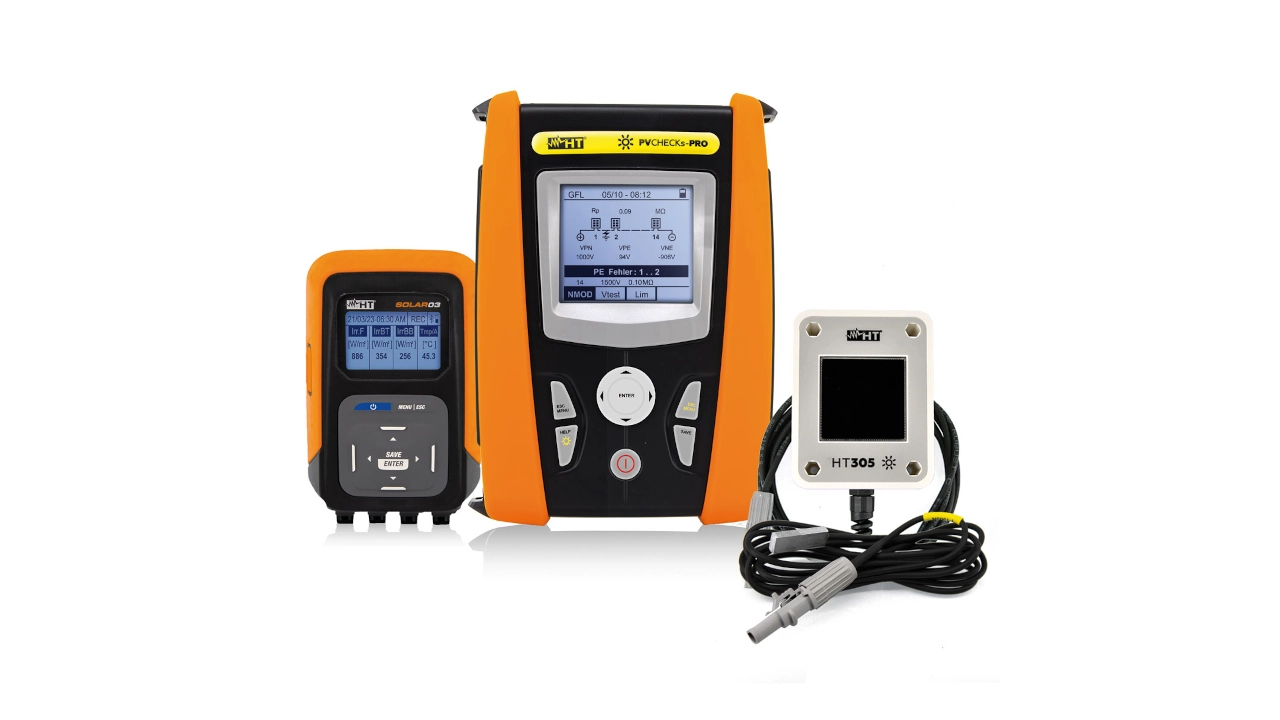

The HT PVCHECKs ProPlus is based on the PVCHECKs-PRO and is designed as a commissioning tester for PV systems up to 1500 V DC and 40 A. Its focus is on safety tests, insulation measurement, open-circuit voltage, short-circuit current, protective conductor continuity and polarity check.

In combination with SOLAR03, the HT305 reference cell and the PT305 temperature probe, irradiance, module temperature and ambient temperature can be integrated into the measurement workflow. For technical teams, the key question is whether measurement functions, accessories, memory structure and TOPVIEW workflow are clearly defined before field use.

Discuss this tester Compare PV testers

PV commissioning tests up to 1500 V DC and 40 A
GFL function for locating insulation problems within a string
SOLAR03 remote unit with Bluetooth BLE for environmental parameters

Description

What is the HT PVCHECKs ProPlus suitable for?

The PVCHECKs-PRO is designed for electrical safety tests and commissioning tasks on PV systems up to 1500 V DC. Typical use cases include initial verification, periodic testing, maintenance, troubleshooting and documentation of tests according to IEC/EN 62446-1.

In everyday O&M, the instrument is especially relevant for teams that need to test many strings efficiently: open-circuit voltage, short-circuit current, insulation resistance, protective conductor continuity and polarity can be covered in a compact workflow. The GFL function also supports narrowing down insulation faults within a string.

Reliable implementation requires more than operating the device. Before use, measurement tasks, SOLAR03 accessories, module and string structure, internal data storage, report logic and team responsibilities should be defined.

Measurement functions

Which tests does the PVCHECKs ProPlus cover?

The measurement functions of the HT PVCHECKs ProPlus are mainly relevant for commissioning and maintenance workflows: basic electrical tests, insulation measurement, continuity, Voc/Isc, GFL function and integration of irradiance and temperature data. For O&M teams, it should be clarified in advance how measurement workflow, limit values, data transfer and documentation are integrated into the specific field and reporting process.

Voc and Isc

Measurement of open-circuit voltage of PV modules and strings up to 1500 V as well as short-circuit current up to 40 A as part of PV testing.

Insulation measurement

Insulation measurement on PV modules, strings and arrays with test voltages of 250 V, 500 V, 1000 V and 1500 V DC. PI and DAR are also supported.

RPE and polarity

Protective conductor continuity with 200 mA and polarity checking are central safety tests in the commissioning workflow.

GFL Ground Fault Locator

The GFL function helps locate insulation faults within a string and can speed up troubleshooting in the field.

Monofacial and bifacial

The workflow supports tests on monofacial and bifacial modules. For bifacial measurements, the right accessories and parameter setup must be prepared carefully.

OPT / MLPE environment

The OPT function is intended for insulation measurements in strings with MLPE devices such as optimizers and RSDs. Always compare the specific function status with firmware and manufacturer approval.

SOLAR03 · HT305 · PT305

Integrating environmental parameters correctly into the PV workflow

For evaluating PV measurements, the electrical measured value alone is often not enough. Irradiance, module temperature and ambient temperature must be recorded traceably and assigned to the correct measurement time.

SOLAR03 remote unit

SOLAR03 is the remote unit for irradiance, temperature and tilt. The connection to PVCHECKs-PRO is made via Bluetooth BLE.

HT305 reference cell

HT305 is used for irradiance measurement and stores calibration parameters internally. In the ProPlus workflow, it is important to assign the right cell correctly to the respective measurement setup.

PT305 temperature probe

PT305 is used for cell or module temperature measurement. Without correct temperature assignment, STC values and comparability lose significance.

Technical data

Key data of the HT PVCHECKs ProPlus

The key technical data shows where the HT PVCHECKs ProPlus is relevant in PV commissioning and maintenance: tests up to 1500 V DC, measurement ranges up to 40 A, insulation and continuity measurement, automatic test sequences, GFL function and integration of irradiance and temperature data into the documentation process.

Device / code	HT PVCHECKs-PRO, HV00PVPR
PV system voltage	up to 1500 V DC
PV short-circuit current	up to 40 A DC
DMM DC voltage	3 V to 1500 V; resolution 1 V
DMM AC TRMS voltage	3 V to 1000 V; frequency range 42.5 Hz to 69 Hz
Insulation measurement	250 / 500 / 1000 / 1500 V DC; dual and timer mode
RPE continuity	0.00 Ω to 1999 Ω; test current >200 mA DC up to 5 Ω
IVCK function	Voc / Isc on PV modules and strings with OPC and STC values
Memory	max. 999 tests; internal PV module database up to 64 modules
Interfaces	Wi-Fi, Bluetooth BLE to SOLAR03, optical/USB port to PC
Display	240 × 240 px LCD with backlight
Measurement category	CAT III 1000 V AC, CAT III 1500 V DC to earth
Ingress protection	IP40
Power supply	6 × AA alkaline 1.5 V or 6 × AA NiMH 1.2 V
Dimensions / weight	235 × 165 × 75 mm; approx. 1.2 kg incl. batteries

Data & communication

From field test to usable documentation

The PVCHECKs-PRO is designed for commissioning tests and straightforward data transfer. Within the company, it should be clear which interface and which software structure are used as the binding standard.

Wi-Fi & TOPVIEW

The integrated Wi-Fi connection supports the workflow with TOPVIEW. Before rollout, define who synchronizes data, checks it and approves reports.

Bluetooth BLE to SOLAR03

SOLAR03 is integrated via Bluetooth BLE to assign environmental parameters such as irradiance and temperature to the measurement process.

Optical / USB to PC

Optical/USB transfer is provided for PC connection and data transfer. This should be considered in the internal data structure.

PV module database

The internal PV module database supports up to 64 modules. For STC values and comparability, module parameters must be maintained cleanly.

Standards & safety

Normative classification of PVCHECKs ProPlus

The normative classification of the HT PVCHECKs ProPlus is especially important for commissioning, periodic testing and safety-related test sequences in the PV environment. For O&M teams, it is not only important which standards are supported, but also how test methods, limit values, documentation and report structure are integrated into the specific testing process.

IEC/EN 62446-1

Basis for documentation, commissioning tests and inspections of grid-connected PV systems. The PVCHECKs ProPlus is designed for these testing processes.

EN 61557

Relevant series of standards for electrical safety in low-voltage systems, including insulation measurement and protective conductor continuity.

CAT III 1500 V DC

The measurement category is relevant for safe use in PV environments. Measurement accessories, work procedures and personnel qualification must match it.

Scope of delivery & accessories

What is included in the ProPlus scope

For a reliable field introduction, not only the main instrument matters, but also accessories, extensions, remote unit, reference cell and temperature probe.

Standard accessories

Typical components include test leads, MC4/banana adapters, optical USB cable, shoulder straps, rechargeable/battery set, charger, hard case, quick start guide and calibration report.

SOLAR03 accessories

SOLAR03, HT305 reference cell and PT305 temperature probe are relevant for irradiance, module or cell temperature and STC-related evaluation.

Field process

Extension leads, MC4 test leads, mounting options and clear responsibilities determine whether multiple technicians can measure and document consistently.

Downloads

Documents for the HT PVCHECKs ProPlus

Here you can find central manufacturer documents for the HT PVCHECKs ProPlus for technical classification, preparation of measurements, safe use and documentation. In the O&M context, the documents should always be considered together with measurement task, accessories, software workflow and report requirements.

PDF Manual Operation, safety, measurement functions, GFL, OPT, IVCK and data transfer PDF Datasheet Technical specifications, measurement ranges, interfaces and standards

Comparison for technical O&M decision-makers

Compare PV testers up to 1500 V in a structured way

Use the comparison page to classify measurement range, measurement functions, software, data handling and reporting capability of different PV measurement solutions for practical use in solar parks.

Go to comparison

Team implementation

How sunparq supports practical use

The device can cover many technical tasks. Operational value only emerges when measurement tasks, accessories, data structure, software and reporting are introduced consistently.

Assessment

Clarifies whether PVCHECKs ProPlus, SOLAR03 and accessories fit the planned measurement process and reporting standard.

Rollout

Introduces measuring instrument, accessories, data structure and reporting as a repeatable workflow for O&M teams.

Operational Readiness

Supports your team after implementation with support, report reviews, onboarding and process refinement.

FAQ

Frequently asked questions about PVCHECKs ProPlus

The following questions help classify when PVCHECKs ProPlus can be useful in PV commissioning and maintenance, and which points should be considered for measurement practice, SOLAR03, GFL function, data structure and reporting.

Is PVCHECKs ProPlus suitable for 1500 V solar parks?

Yes. PVCHECKs ProPlus is positioned for PV systems up to 1500 V DC and 40 A, making it relevant for many testing tasks in modern PV systems.

The specific use still always has to be checked against plant structure, measurement task, measurement category, accessories, safety requirements and current manufacturer documentation.

For which O&M situations is PVCHECKs ProPlus especially suitable?

PVCHECKs ProPlus is particularly interesting when testing workflows for commissioning, periodic testing, troubleshooting and maintenance are the focus.

For O&M teams, it is important to consider the full workflow: measurement task, limit values, accessories, environmental parameters, data transfer, documentation and later use of results in the report.

What role does SOLAR03 play?

SOLAR03 is the corresponding remote unit for recording environmental parameters. Together with HT305 for irradiance and PT305 for temperature, relevant ambient data can be integrated into the measurement workflow.

For O&M teams, it is crucial that this data is assigned correctly in time and structure to the right measurement points. Only then can measurement results be evaluated and documented traceably later.

What is the GFL function?

GFL stands for Ground Fault Locator and supports narrowing down an insulation problem within a PV string.

In O&M operation, this function can be especially relevant for troubleshooting, repeat measurements and prioritizing field measures. It is important that measurement setup, safety and documentation match the specific fault pattern.

What role does documentation play with PVCHECKs ProPlus?

Documentation is a central part of the workflow. Measurement values, environmental parameters, limit values, test objects and findings must be structured so that they can later be used traceably in the report.

Especially for recurring tests and larger systems, it is important to define in advance how projects, strings, measurement points, exports and reports will be organized.

How does sunparq support implementation?

sunparq can support the use of PVCHECKs ProPlus through assessment, training, rollout, Operational Readiness or Critical Support. The focus is not only on operating the device, but on the full measurement and documentation process.

This includes classification of measurement tasks, accessory selection, SOLAR03/HT305/PT305 workflow, data structure, report logic, report reviews and support in ongoing O&M operation.
